Automatic 12 Axes CNC Spring Machine with 1-4mm Wire Capacity and 100m/min Speed for High Efficiency

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	HYD

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1

Contact

Gedetailleerde productomschrijving

Gewicht:	3200 kg	Spanning:	380 V
Stroom:	27 kw	Draadmaat:	Koolstofarme staal: 2-6 mm, koolstofarme staal: 1-4 mm
Servo Motors:	12 assen	Max Wire Speed:	100 m/min
Draadvoerrol:	4 paren	Maximumfout:	± 0,15 (lengte)
Besturingssysteem:	1Set	Stam:	300 kg
Servomotormacht:	21.5kw	Kortste engellengte:	4 keer draaddiameter
Stroomvoorziening:	380V ± 10%V50Hz	Machinedimensie:	L1100W1450H2000MM
Motormerk:	SANYO
Markeren:	12 Axes CNC Spring Machine , 1-4mm Computer Spring Machine , 100m/min Spring Coiling Machine

Automatic 12 Axes Swivel Type Spring Making Machine

Multi-function computer spring machine for metal & metallurgy applications with wire sizes from 1-4mm.

Technical Specifications

Model	HYD-42T-12A	HYD-42T-13A
Wire Size	Low-carbon Steel 2-6mm High-carbon Steel: 1-4mm	Low-carbon Steel: 2-6mm High-carbon Steel: 1-4mm
Servo Motors	12 axes	13 axes
Lead Rail	tineraries 120mm	tineraries 120mm
Wire Feed Roller	4 Pairs	4 Pairs
Maximum error	±0.15 (Length)	±0.15 (Length)
Max Wire Feed Speed	100m/min	100m/min
Control System	1SET	1SET
Decoiler	300KG	500KG
Reducer	10PCS	11PCS
Servo Motor Power	21.5KW	27KW
Motor Brand	Sanyo	Sanyo
Shortest Angel Length	4 Times Wire Diameter	4 Times Wire Diameter
Power Supply	380V±10%V50Hz	380V±10%V50Hz
Machine Dimension	2500KG	3200KG
Machine Size	L1100W1450H2000MM	L2100W2050H2000MM

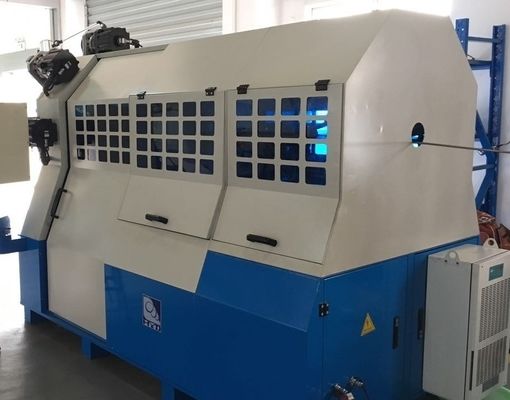

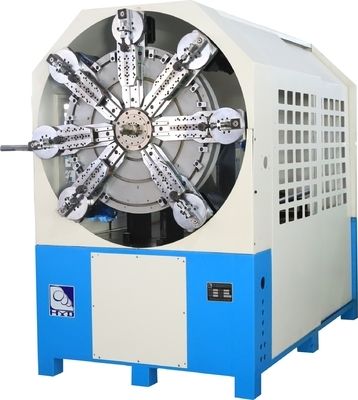

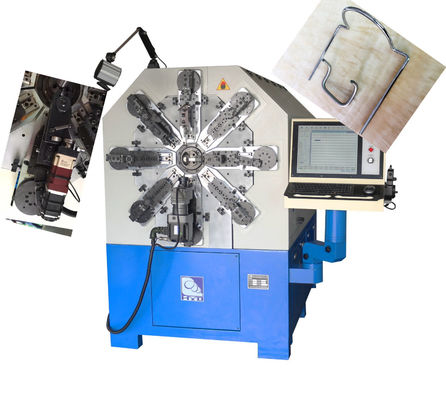

Machine Gallery

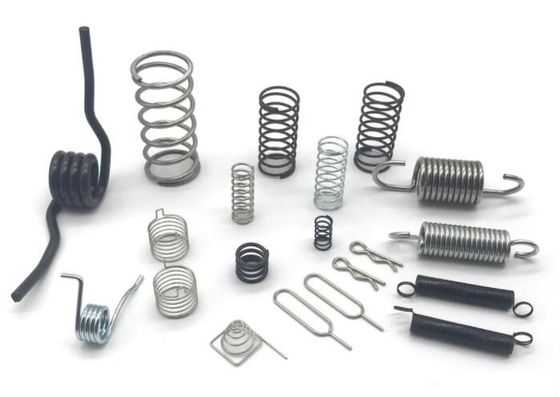

Application Scenarios

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
