20T-4A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V

20T-4A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V

20T-4A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V
20T-4A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V
20T-4A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V
Productdetails:
Plaats van herkomst: Dongguan, China
Merknaam: HYD
Certificering: CE / IS09001
Modelnummer: HYD-20T-4A
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 set
Prijs: Onderhandelbaar
Verpakking Details: Standaard zeewaardige multiplexkoffer
Levertijd: 15 dagen
Betalingscondities: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen: 30 sets een week
Contact
Gedetailleerde productomschrijving
Draaddiameter: 0,2-2,3 mm as: Drie tot vier assen
Leverdatum: 15 dagen CNC -systeem: Automatisch
Stam: 150 kg Snijgereedschap: Standaard
Extra tool: Spinner
Markeren:

380V torsion spring machine

,

high-speed cam computer spring machine

,

0.2-2.3mm torsion spring machine

20T-4A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V

20T-4A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V

Product Specifications
Attribute Value
Wire Diameter 0.2-2.3mm
Axis Three to Four Axes
Delivery date 15 days
CNC system Automatic
Decoiler 150KG
Cutting tool Standard
Additional Tool Spinner
Product Description

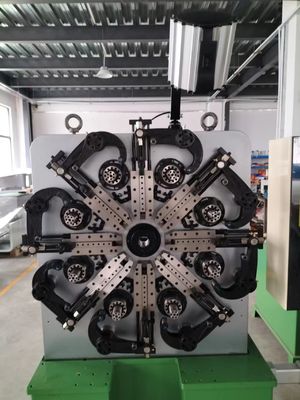

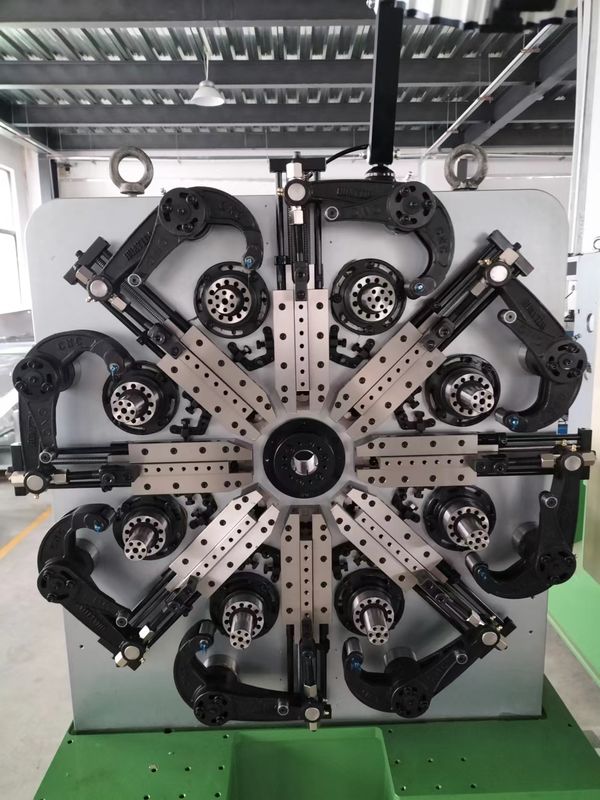

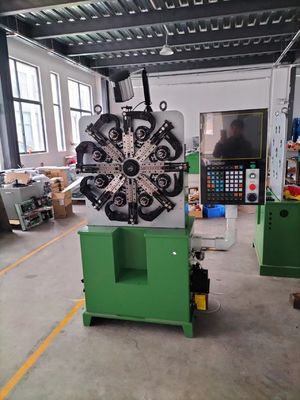

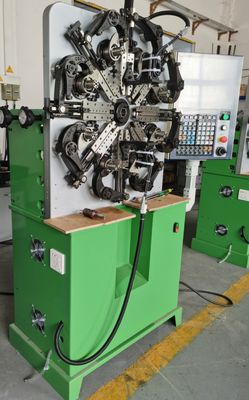

0.2 - 2.3mm Torsion Spring Making Machine with Three to Four Axes

This machine can make tension spring, torsion spring, and many kinds of wire forms. The original model comes with three axes, but we can also customize based on requirements. We have already made machines with four axes, five axes, six axes, ten axes, and twelve axes. Twelve axes models include wire rotation function in the back.

Wire size 0.2-2.3mm
Max feeding speed 141m/min
Direct storage programs 1000
X-axis motor output 2.7KW
Y-axis motor output 2.7KW
Z-axis motor output 1.0KW
Machine size 1400×900×1600mm
Voltage 380V
Weight 700kg
Spring Examples
20T-4A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V 0
20T-4A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V 1
20T-4A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V 2
20T-4A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V 3
20T-4A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V 4
20T-4A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V 5
20T-4A 141m/Min Max Feeding Speed 0.2 - 2.3mm Cam Computer Spring Machine 380V 6
Service Support
  • Durable quality of machine and the most professional service would be provided.
  • Free solution for your production will be provided. The staff in HYD company are with rich experience, best solution will be provided all the time.
  • Your visiting to HYD company for checking or training is warmly welcome.
