CNC Spring Machine with 10 Axes Servo Motors 1.0-4.0MM Wire Size and 0-60 RPM Cam Revolution Speed

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	HYD

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1

Contact

Gedetailleerde productomschrijving

Gewicht:	1800 kg	Spanning:	380 V
Stroom:	12 kW	Draadmaat:	Hoog koolstofgehalte: 1-4 mm; Laag koolstofgehalte: 2-6 mm
Servo Motors:	10 assen	Max Wire Speed:	100m/min
CAM -revolutiesnelheid:	0-60 tpm	Buitendiameter:	Maximaal 60 mm
Draadvoerrol:	4 paren	Maximumfout:	± 0,10 ~ ± 359,90
Draadvoedermotor:	5,5 kW	Cam -motor:	5,5 kW
Kernasmotor:	1,0 kW	Machinedimensie:	2500 kg
Machinegrootte:	L1100B1400H2000MM
Markeren:	10 Axes Servo Motors CNC Spring Machine , 1.0-4.0MM Wire Size Computer Spring Machine , 0-60 RPM Cam Revolution Speed Spring Coiling Machine

Spring Making Machine CNC Spring Machine Camless Spring Machine 1.0-4.0MM HYD

Product Overview

The HYD-40T-10A is a high-performance CNC spring machine designed for precision spring manufacturing with wire sizes ranging from 1.0-4.0mm for high-carbon steel and 2-6mm for low-carbon steel.

Technical Specifications

Model	HYD-40T-10A
Wire Size	High-Carbon: 1.0-4.0mm; Low-Carbon: 2-6mm
Servo Motors	10 axes
Outside Diameter	Max 60mm
Wire Feed Roller	4 Pairs
Maximum Error	±0.10~±359.90
Wire Feed Speed	100m/min
Cam Revolution Speed	0~60 RPM
Control System	1SET
Decoiler	300KG
Wire Feed Motor	5.5KW
Cam Motor	5.5KW
Core Axis Motor	1.0KW
Motor Brand	Sanyo
Power Supply	380V±10%V50Hz
Machine Weight	2500KG
Machine Dimensions	L1100×W1400×H2000MM

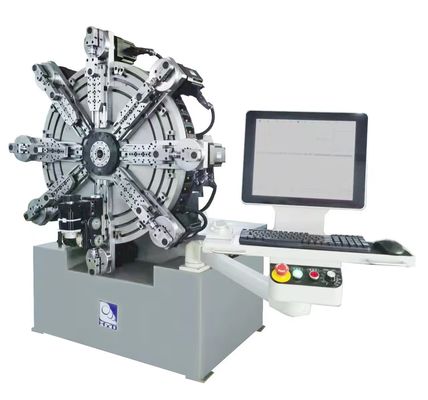

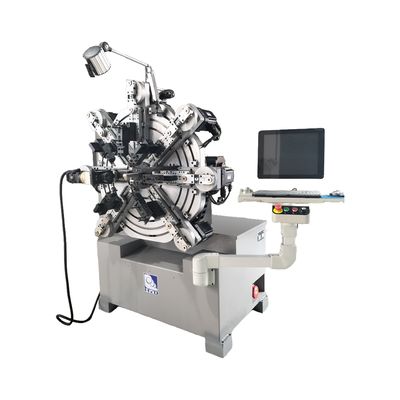

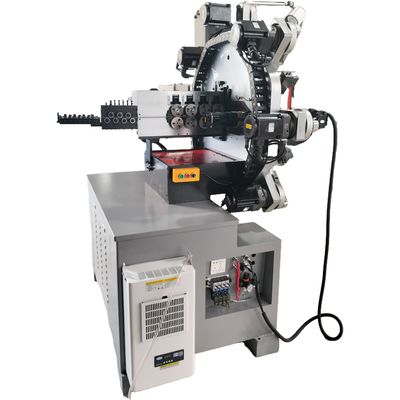

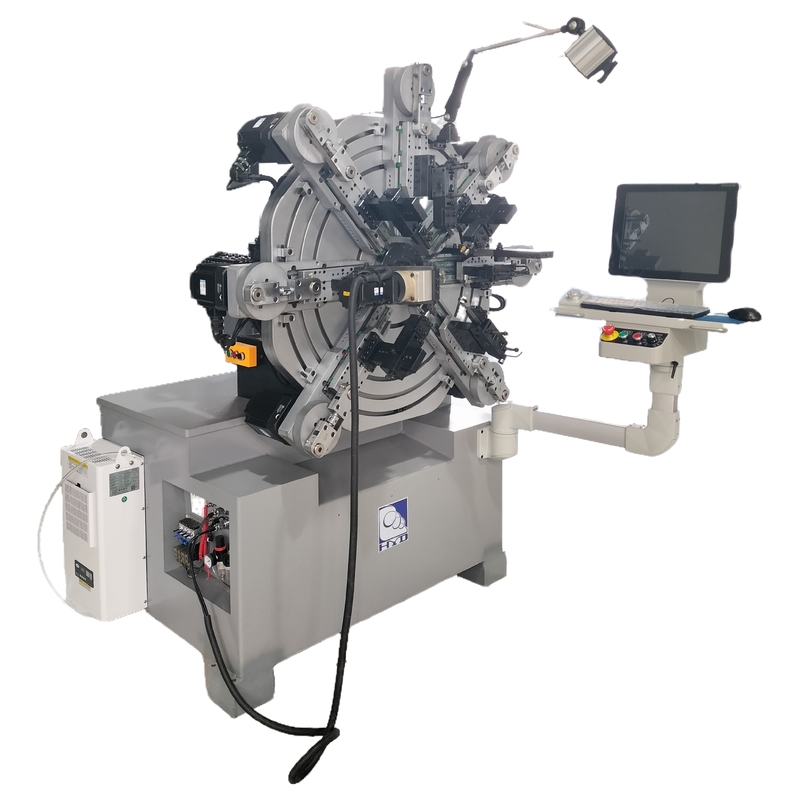

Product Images

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customize as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
